As driving time increases, the chances of a vehicle accident also increase. Even after repairs, these issues can leave a DTC (DTC) on the vehicle’s computer. The LAUNCH X431 tool can reset the module information on the vehicle’s computer and clear DTCs.

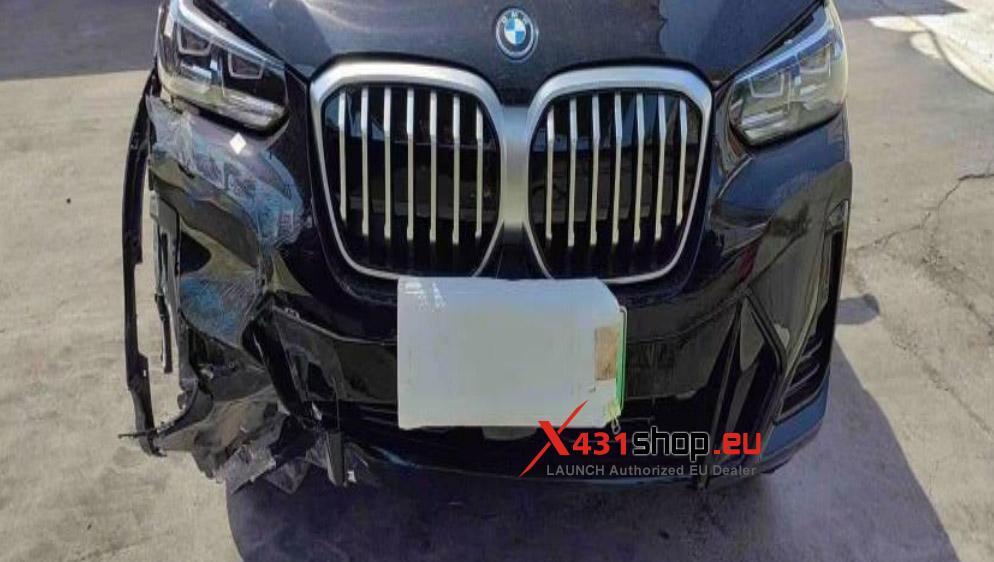

In this example, a BMW iX3 was involved in an accident on the front right side of the vehicle. After repairs, the vehicle still displays a “Cross-collision warning fault.” We will use the LAUNCH X431 PAD V ELITE to reset the short-range radar sensor correction angle to clear the DTC.
Function description: For BMW iX3, there is a DTC 481CFB SRSNVR “Misalignment – Side Radar Sensor Short Range Front Right”. The function of “short-range radar sensor: reset correction angle” needs to be performed.
NOTE: The steps in this article apply to situations where the vehicle has been repaired but the onboard computer still reports an error and the DTC has not been cleared. If the vehicle has a component failure, please repair the vehicle first.
Supported products: LAUNCH PRO3 series / PAD series comprehensive diagnostic equipment
X431 PRO/PRO3 series: X431 PROS V / X431 V+ / X431 PRO ELITE / Pros Elite / X431 V / PRO3 V+ Elite / PRO3S+ ELITE / X431 PRO3S+ / Pro3 ACE / Pro3 APEX / X431 PRO5
X431 PAD series: X431 PAD V(PAD V ELITE) / X431 PAD VII(PAD VII ELITE) / X431 PAD IX
Tested model: 2024 BMW ix3, VIN: LBV41DU08RS******
Procedure:

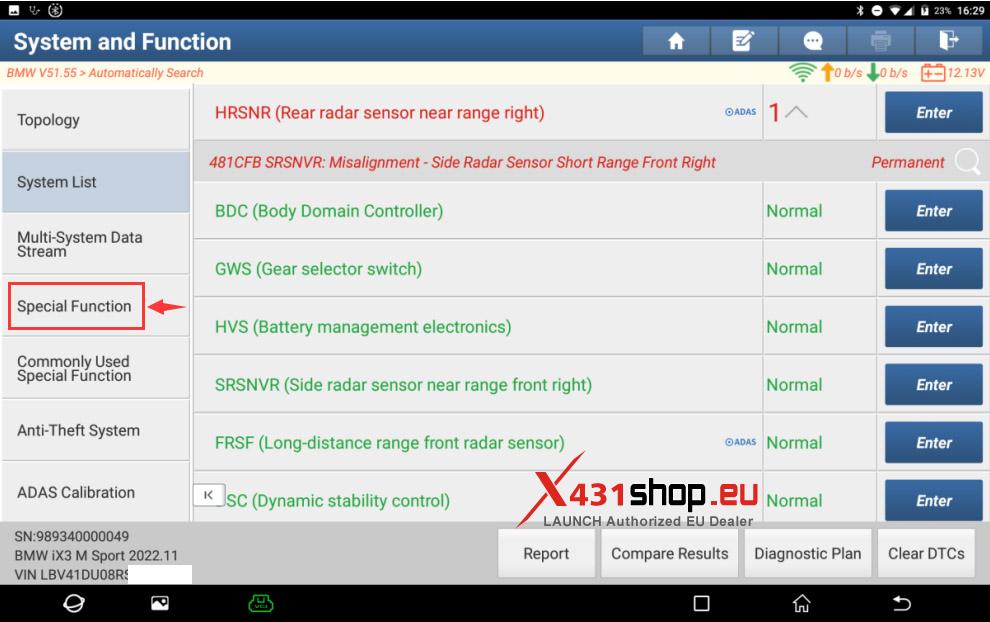

1. Connect the vehicle and perform a quick scan. There is a DTC 481CFB SRSNVR “Misalignment – Side Radar Sensor Short Range Front Right”. On the diagnostic results page, choose [Special Function].

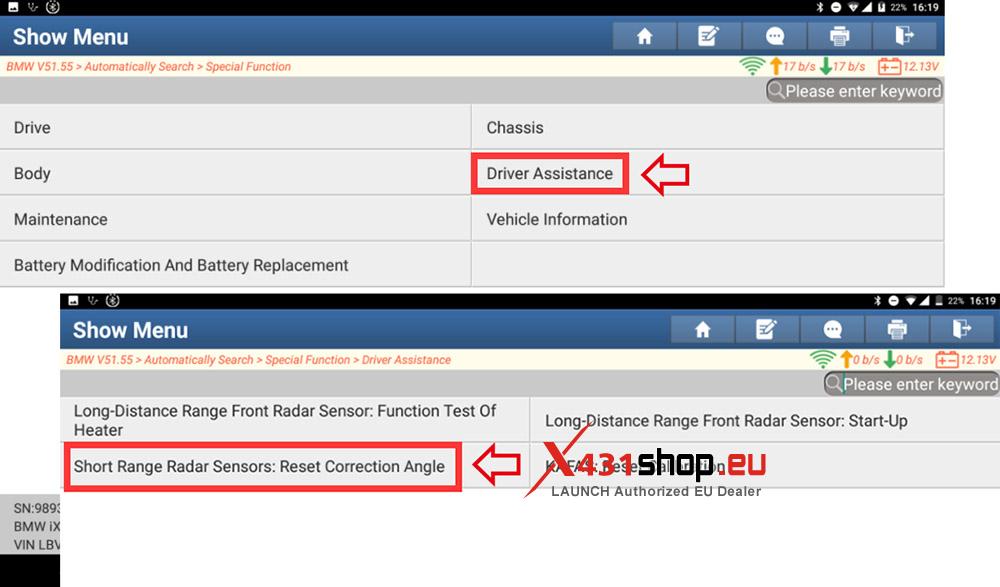

2. Choose [Driver Assistance] -> [Short Range Radar Sensors: Reset Correction Angle].

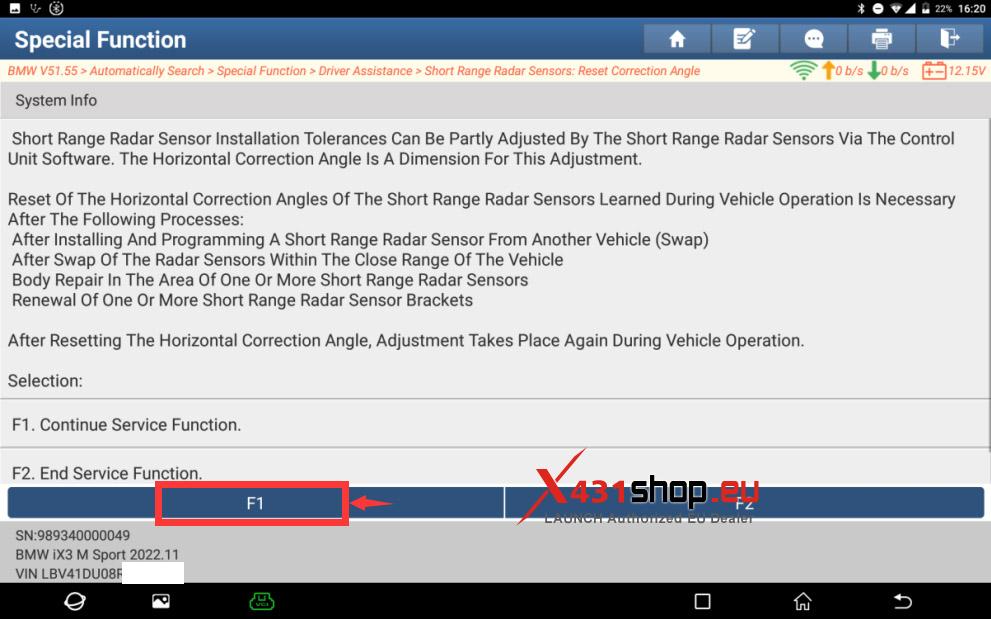

3. Click [F1].
4. The short-range radar has been correctly fixed. Click [Yes].
5. Choose [F3.SRSNVR – Side Radar Sensor Near Range Front Right].

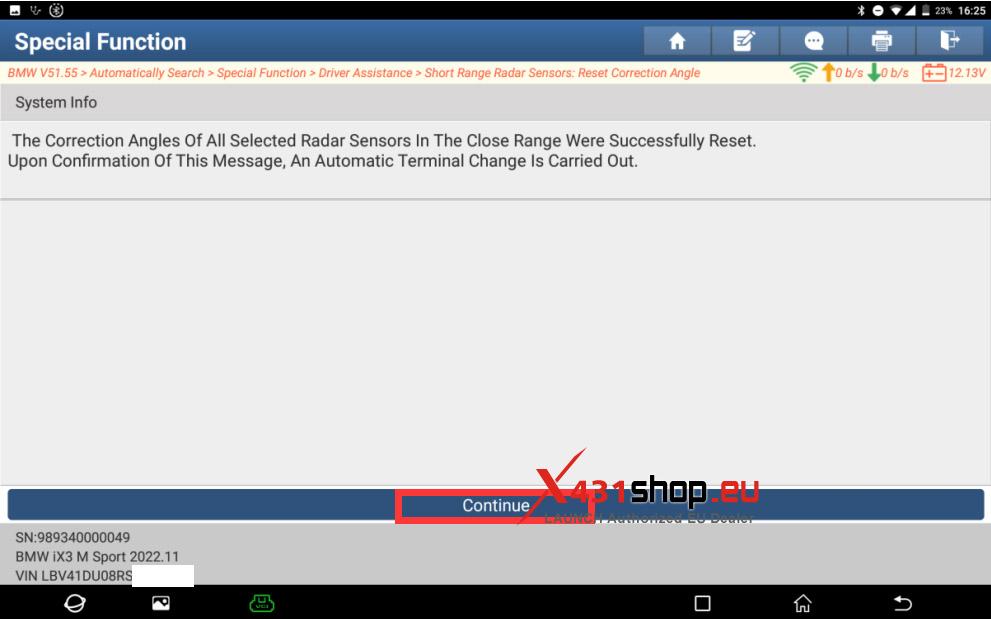

6. The selected short-range radar sensor correction angle has been successfully reset. Click [Continue].
7. Save the fault report. There is no DTC.
After these operations are completed, you can drive the vehicle, and the vehicle learns the horizontal correction angle of the short-range radar sensor during driving.
