Dealing with a frustrating crank, no-start? This real-world case study on a 2015 Toyota Sienna shows how a LAUNCH X431 PRO3S+ Elite scanner can cut through the guesswork. See how it provided the critical data to quickly redirect the diagnosis toward a failing fuel pump, saving precious diagnostic time.
Vehicle: 2015 Toyota Sienna
Complaint: Engine cranks but will not start. Intermittent stalling history.
Diagnostic Goal: Identify the root cause of the no-start condition.
Key Diagnostic Tool Used Initially: X431 PRO3S+ Elite
Step-by-Step Diagnostic Procedure:
- Initial Scan & Critical Data Verification
Tool Used: LAUNCH X431 PRO3S+ Elite.

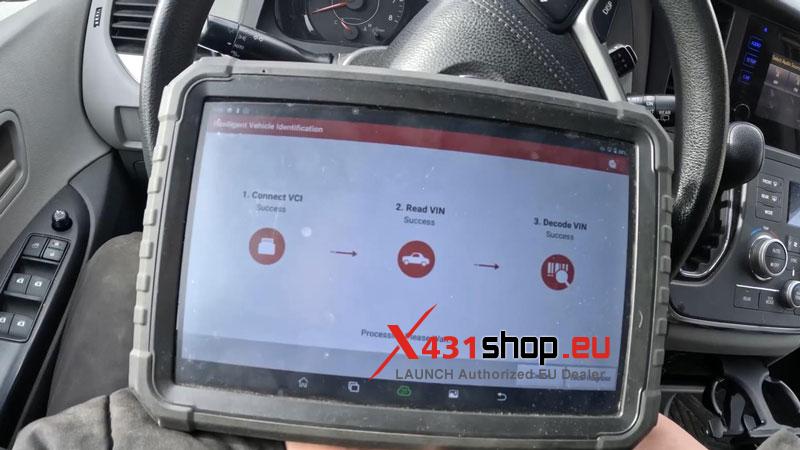

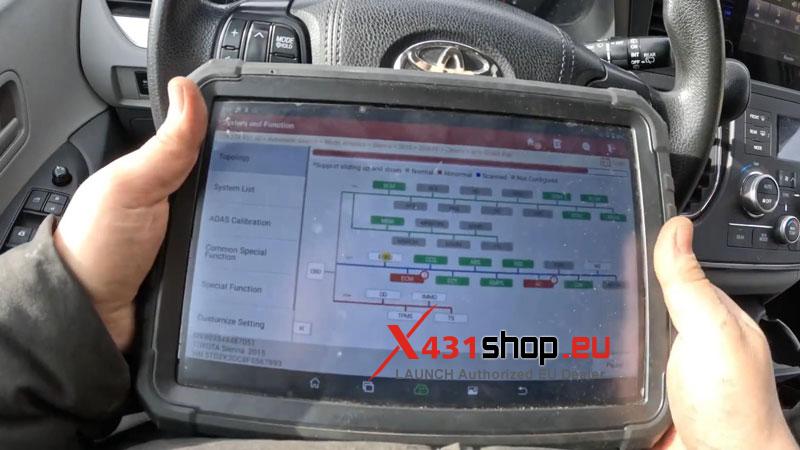

Action: Perform a full vehicle scan.

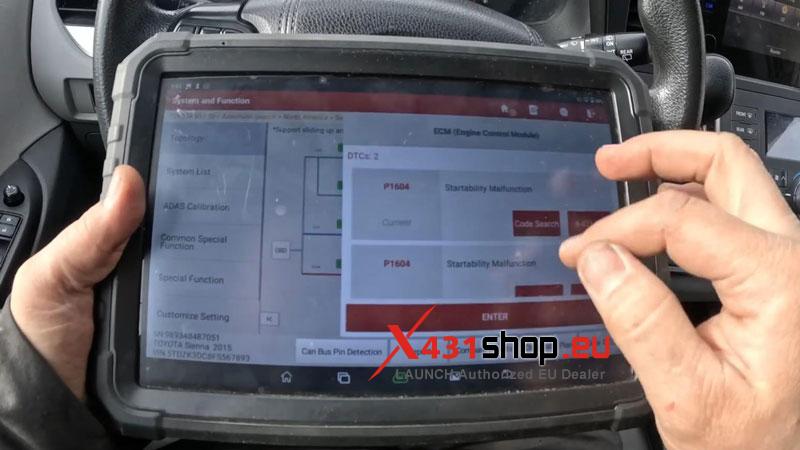

Finding: ECM code: “Start Ability Malfunction.” This confirms the no-start condition is electronic.
Action: Use the Live Data Stream function.
Finding: Monitor “Engine Speed” while cranking. The RPM signal is present.
Conclusion: The crankshaft position sensor is working. This rules out a common crank/no-start cause and shifts focus away from the ignition/timing system immediately.
- Isolating the System (Fuel vs. Spark)

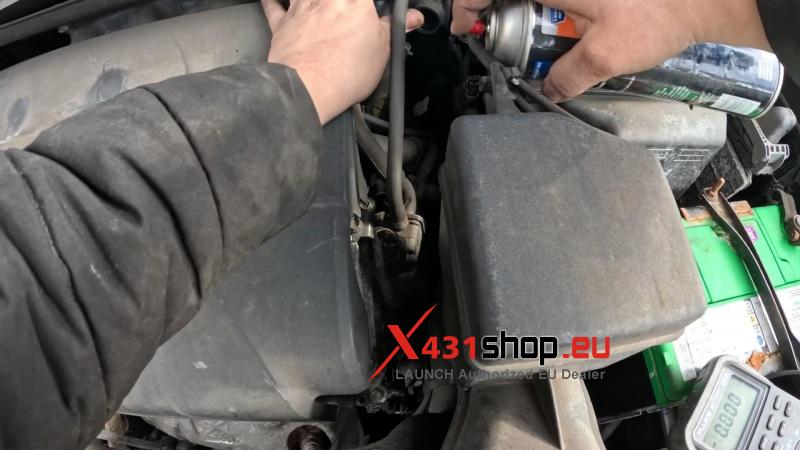

Action: Introduce starting fluid into the intake.
Result: Engine starts briefly.
Conclusion: Confirms ignition/spark is functional. The problem is almost certainly fuel delivery.
- Electrical Circuit Check (Fuel Pump)

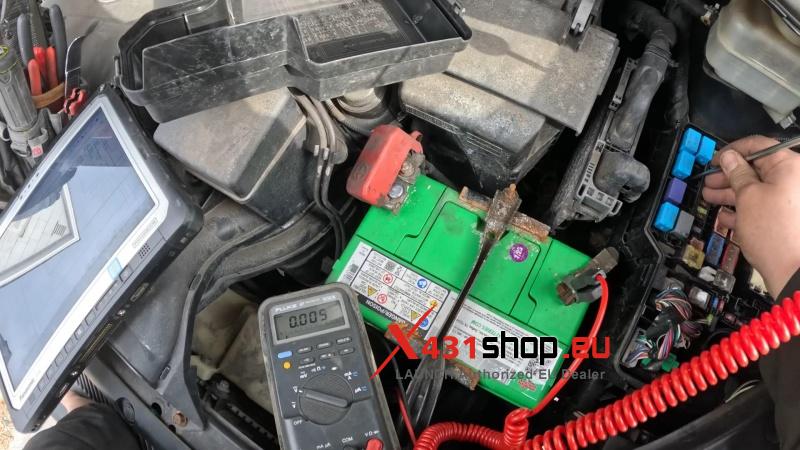

Tools Used: Test light, multimeter.

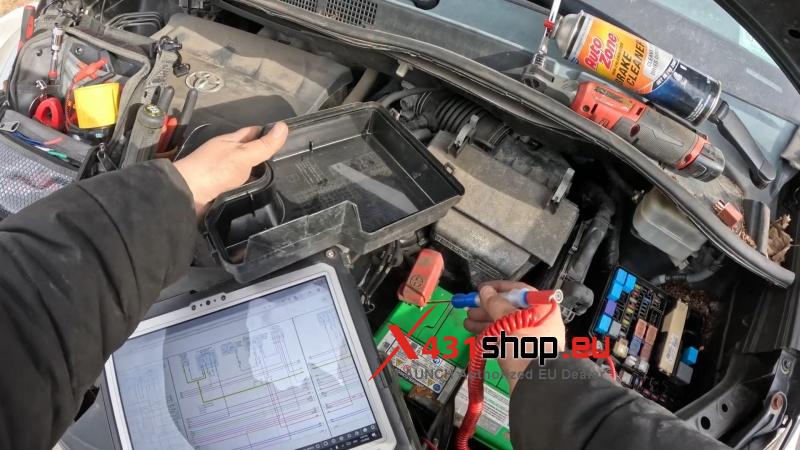

Action: Check power and ground at the fuel pump circuit.
Finding: Power is present. The ground path is intermittent.
Key Test: Physical tapping on the fuel pump area restores ground connection and allows the engine to start.
Conclusion: The fault is in the fuel pump or its connector.
- Advanced Signal Analysis (Confirmation)
Tool Used: Dedicated oscilloscope/current clamp.
Action: Analyze the fuel pump current waveform.
Finding: Waveform shows consistent drops every 8 cycles, indicating a mechanical dead spot in the pump motor.
Conclusion: Objective proof of a failing fuel pump.
Final Diagnosis: Failed Fuel Pump.
Recommended Repair:
- Inspect the fuel pump electrical connector for damage or melting.
- Replace the in-tank fuel pump assembly.
The Pivotal Role of the LAUNCH X431 PRO3S+ Elite
This case underscores the scanner’s core value: efficient diagnostic triage. While specialized tools were needed for final verification, the X431 PRO3S+ Elite delivered the decisive starting intelligence in under a minute:
• Cleared a Major Suspect: Live data stream confirmed a good RPM signal, instantly ruling out a faulty crank sensor.
• Defined the Path Forward: This pivotal finding confidently steered all further testing toward the fuel system.
For professional technicians, this isn’t just about reading codes — it’s about gaining immediate direction, eliminating wasted time, and building a fact-based repair strategy from the first connection.
