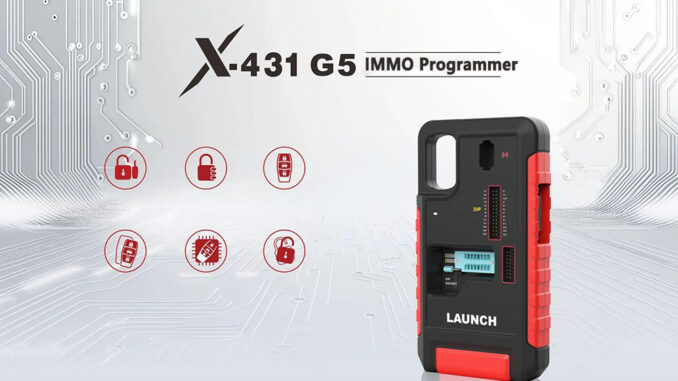

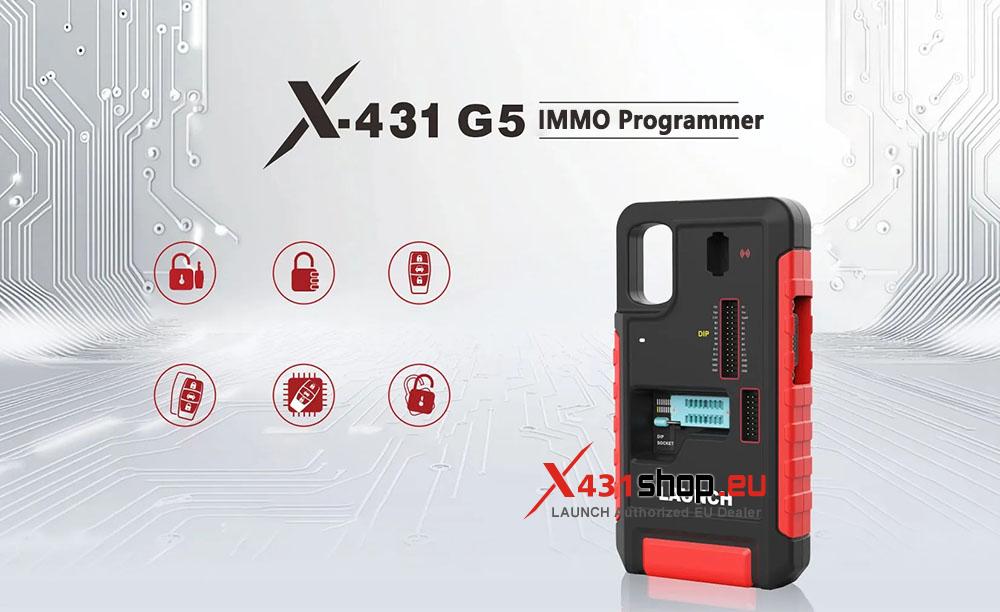

LAUNCH X431 is developing a new IMMO programmer: the X431 G5. Judging from its features and name, the G5 is likely a new addition to the XPROG3 (G3). This article will briefly introduce the features of the X431 G5.
NOTE: The LAUNCH X431 G5 is not yet available for purchase; there may be some adjustments upon its official release.
Which X431 diagnostic tools does the LAUNCH X431 G5 support?
The X431 G5 can be used with the X431 PAD series (X431 PAD V ELITE, PAD VII ELITE, PAD IX), as well as comprehensive diagnostic tools such as PRO3 V+ ELITE/ PRO3S+ ELITE.
Q: How do I use the PC software for the LAUNCH X431 G5? Can I use the XPROG3 (G3) PC Adapter with the G5 to connect to my computer?
A: The LAUNCH X431 G5 can connect directly to the computer; a PC Adapter is no longer needed.
Can the LAUNCH X431 G5 completely replace the X431 Key Programmer for key generation?
A: Yes, the LAUNCH X431 G5 supports key generation and can be used in conjunction with the X431 IMMO tool.
LAUNCH X431 G5(XPROG5) vs LAUNCH X431 G3(XPROG3)
| X431 PROG5 | X431 PROG3 | |
| VW/Audi 3rd/4th/5th Gen Key Programming | Support | Support |
| VW 4th Gen Instrument Cluster All-Key-Lost Key Reading | Support | Support |
| Audi 5th Gen Steering Column Chip Read/Write | Support | Support |
| MED17 Engine OBD Reading | Support | Support |
| VW 4th Gen UDS Engine Replacement | Support | Support |
| VW/Audi MQB Platform Engine/Transmission/Steering Column Replacement | Support | Support |
| VW/Audi 5th Gen/MQB Platform Transmission FLASH/EEPROM Read/Write | Support | Support |
| VW/Audi Bosch Engine Cloning | Support | Support |
| VW/Audi Siemens Engine Cloning | Support | Support |
| Post-2014 UDS Engine Replacement (No Original Engine Required) | Support | Support |
| VW MQB 5C/5D Key Programming | Support | Not supported |
| VW/Audi SIMOS18 Series Cloning | Support | Not supported |
| VW V850 Series Instrument Cluster Data Reading & Cloning | Support | Partially supported (fewer models) |
| VW RH850 Series Instrument Cluster Data Reading & Parsing | Support | Partially supported (fewer models) |
| VW MQB Instrument Cluster All-Key-Lost Support (Mechanical/Smart Key) (Engine/Transmission Data Types Read/Write & Parsing Available) | Support | Partially supported (fewer models) |
| Mercedes-Benz Key Programming (FBS3) | Support | Support |
| Mercedes-Benz Engine/Transmission Erasing (FBS3) | Support | Support |
| Mercedes-Benz Engine (FBS4) | Support | Support |
| Mercedes-Benz Transmission Cloning (FBS4): 2 Types of 7-Speed, FDCT, 9-Speed | Support | Support |
| Mercedes-Benz W164/W169/W209/W211 Gateway-Free Mode Pin Code Calculation under All-Key-Lost Condition (FBS3) | Support | Not supported |
| Mercedes-Benz Multiple Types Lock Cylinder Cloning | Support | Partially Support |
| Mercedes-Benz FDCT/VGS4 NAG2/VGS NAG3 Cloning (FBS4) | Support | Not supported |
| Mercedes-Benz DSM (FBS4) | Support | Not supported |
| Mercedes-Benz Key Adding with Pin Code Calculation (FBS3) | Support | Support |
| Mercedes-Benz All-Key-Lost Pin Code Calculation (FBS3) | Support | Support |
| BMW (CAS1, CAS2, CAS3, CAS4, FEM/BDC) | Support | Support |
| BMW G-Chassis Key Programming | Support | Support |
| BMW Engine ISN Code Reading | Support | Partially supported (fewer models) |
| BMW E-Chassis 8HP Transmission Erasing | Support | Support |
| BMW E-Chassis 8HP Transmission Cloning | Support | Support |
| BMW FRM Repair | Support | Support |
| BMW F-Chassis 6HP Transmission Erasing/Cloning | Support | Support |
| BMW F/G-Chassis 8HP Transmission Cloning | Support | Support |
| BMW F/G-Chassis 8HP Transmission Erasing | Support | Support |
| BMW Engine Replacement | Support | Support |
| BMW Bosch Engine Cloning | Support | Support |
| BMW Siemens Engine Cloning | Support | Support |
| Porsche 2011-2017 Key Programming | Support | Support |
| Porsche Front/Rear ECU Cloning | Support | Support |
| Porsche Engine & Transmission ECU Cloning | Support | Support |
| Porsche Battery Repair | Support | Support |
| All Models Bosch Engine Cloning | Support | Support |
| All Models Siemens Engine Cloning | Support | Support |
| All Models Transmission Cloning | Support | Support |
| All Models DELCO/DENSO/Marelli Engine Cloning | Supported (more models) | Support |
| RH850 Encrypted Chip Read/Write | Supported (more models) | Support |
| BMS Chip Read/Write Function | Support | Not supported |
| Supports ID48/96, ID46 Transponder Chip Cloning Function | Support | Not supported |
| ECU Data Checksum Function | Supported (more models) | Support |

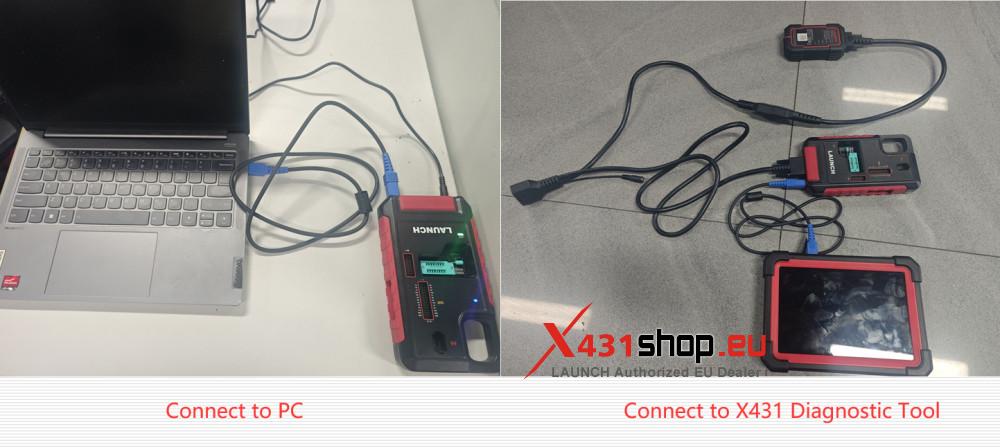

LAUNCH X431 G5 connection method
The LAUNCH X431 G5 can connect to a PC and X431 diagnostic tools. Refer to the diagram below for connection instructions.
What are the functions of the LAUNCH X431 G5?
- The LAUNCH X431 G5 supports ECU cloning for engines and transmissions from brands such as Bosch, Continental/Siemens, Delco, Denso, Marelli, ZF, Getrag, and Temic, covering over 10,000 vehicle models.
- Supports read/write functions for over 3,000 types of chips, including encrypted chips (RH850/V850, etc.) and BMS chips.
- Supports data verification of engine ECUs from various vehicle brands.
- It integrates key programmer hardware, supporting smart key generation and ID48/96 and ID46 key chip cloning functions.
- Integrated with LAUNCH X431 PC ECU software, supporting ECU reading and writing on PC software, and supporting ECU cloning and data verification functions.
Fully supports Volkswagen/Audi anti-theft systems:
Supports platforms including 3rd/4th/5th generation and MQB;
Supports key addition, key loss recovery, and anti-theft component replacement functions; Supports engine replacement and matching functions, and supports cloning of various engine/transmission types;
Supports MQB ELV, Audi 5th generation BCM2 encrypted data reading and parsing, and cloning functions for SIMOS18 series engines.
Fully supports BMW anti-theft systems:
Supports CAS1/2/3/3+ and CAS4/4+ cloning functions;
CAS4/4+ and FEM/BDC replacement; BMW G chassis key matching;
FRM module repair; transmission data erasure and engine replacement.
Supports Mercedes-Benz vehicles:
Supports Mercedes-Benz FBS3, enabling data erasure, replacement, and cloning of various types of steering locks, ignition coils, engines, transmissions, and shift modules;
Supports cloning functions for various FBS4 engines and transmissions, including DSM/FDCT/VGS4NAG2/VGSNAG3, allowing for data erasure and personalization without opening the casing.
Supports Porsche vehicles:
Supports key matching, front and rear ECU cloning, and various types of engine and transmission cloning, as well as battery repair for Porsche vehicles from 2011-2017.

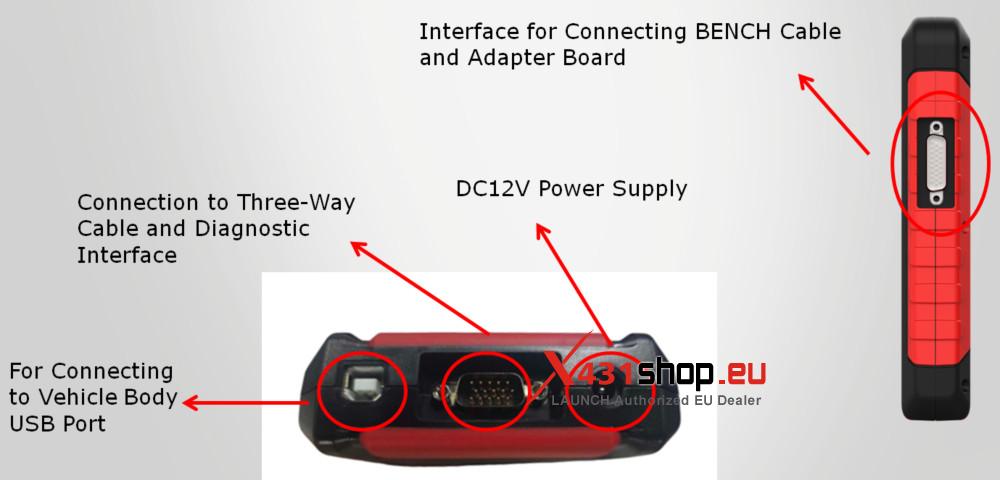

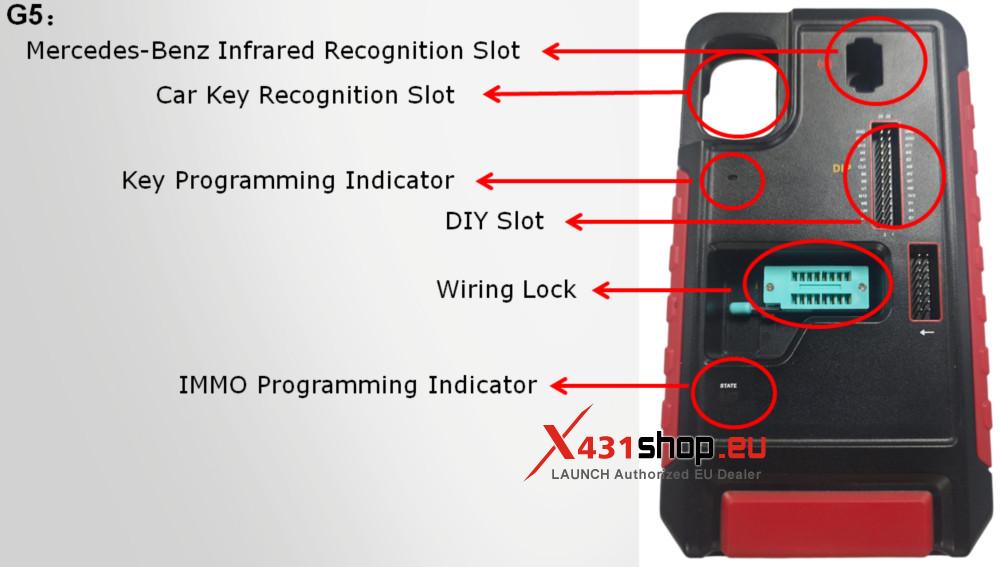

Functions of each component in the LAUNCH X431 G5:
Car Key Slot: For holding the car key for RF detection.
DB26: For connecting various anti-theft wires.
DC 14VD: For connecting a DC14V power supply.
DB15: For connecting the vehicle diagnostic interface (DLC).
Mercedes-Benz Key Slot: For holding the Mercedes-Benz key to perform key matching.
Status Indicator: Power status indicator.
DIY Slot: For connecting the anti-theft ECU pins via cable for reading and writing data.
Latch: For securing a loose EEPROM board.
EEPROM Slot: For inserting the EEPROM board.
LAUNCH X431 G5 Product Specifications
Interface: DB26/DB15
Input Voltage: DC14V
Input Current: 500MA
Operating Temperature: 0 – 50 degrees Celsius
Storage Temperature: -20 – 70 degrees Celsius
