The Launch X431 PRO3S+ Elite is a high-performance diagnostic tool built for 2022+ vehicle architectures. I recently used it on a 2022 Hyundai Tucson (NX4) experiencing a common dual-clutch transmission (DCT) failure: loss of even gears and reverse. The scanner’s bi-directional controls and Smartlink Jbox were essential for pinpointing the fault without an expensive teardown.
- Fast Diagnostics with Topology Mapping

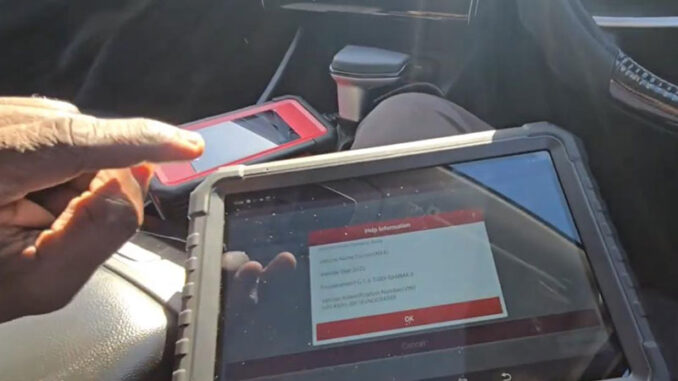

- Smartlink Jbox & Auto VIN: The tool immediately identified the 1.6T GDI Tucson and its specific chassis configuration.
- Topology Map: Provides a visual CAN bus layout, showing the communication status of every module at a glance.
- Real-time Monitoring: I used the scanner to check OBDII pin voltages (Pins 16, 14, and 6) to rule out bus communication errors early.
- Pinpointing DTC P090B78

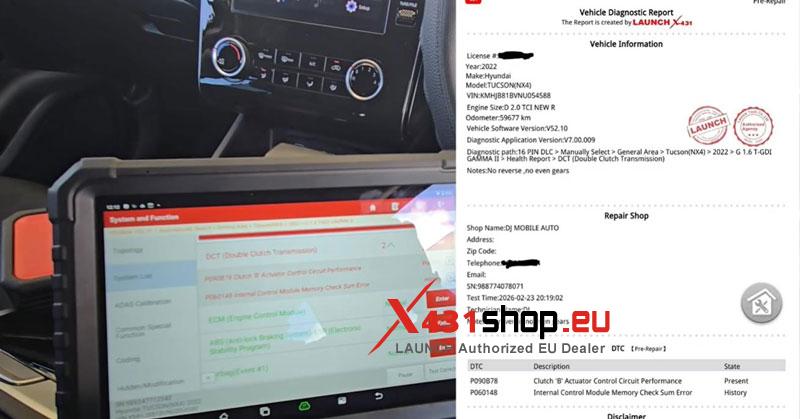

The scanner identified P090B78 (Clutch B Actuator Control Circuit Performance). To decide between a clutch pack replacement or a simpler actuator fix, I used:
- Clutch Wear Analysis: The tool read a 52.7% wear value, confirming the internal clutch was healthy.

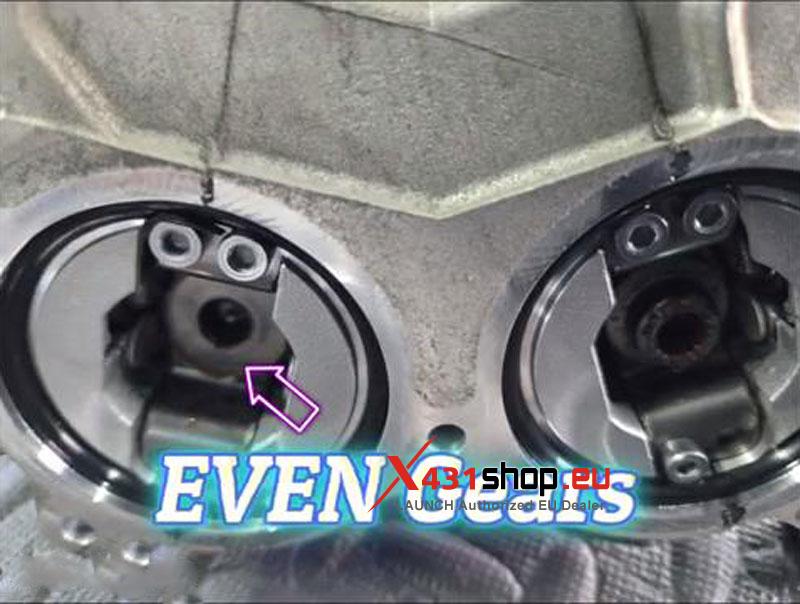

- Actuation Testing: Using bi-directional control, I triggered the actuators; the odd clutch passed, but the even clutch failed, confirming a mechanical failure in the actuator.
- Repair & DCT Learning Process

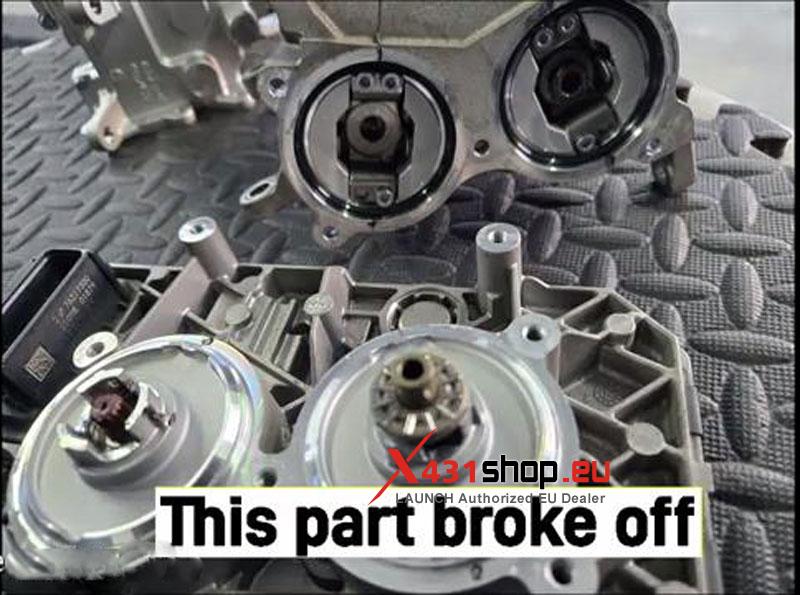

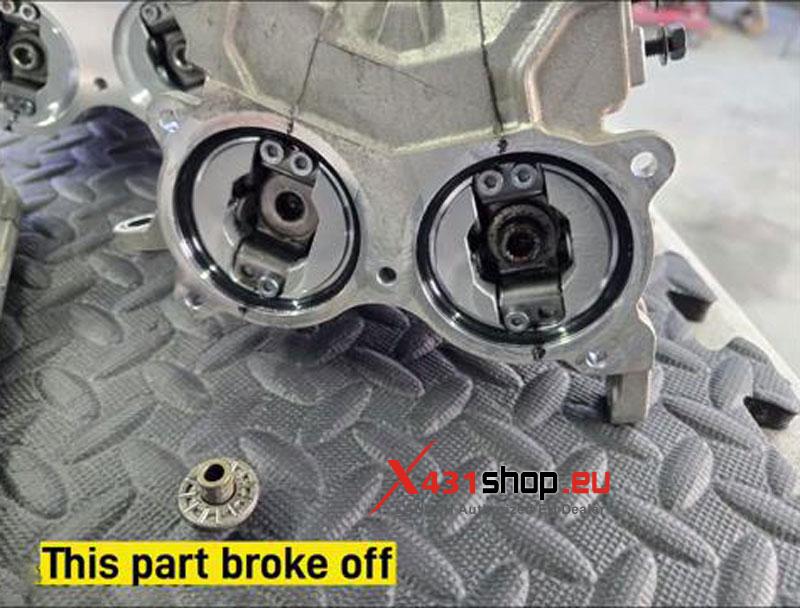

After replacing the actuator (where I found a broken internal bearing), the X431 PRO3S+ Elite managed the critical calibration.
- J2534 Capability: The Smartlink Jbox supports OEM-level online/offline coding and programming.

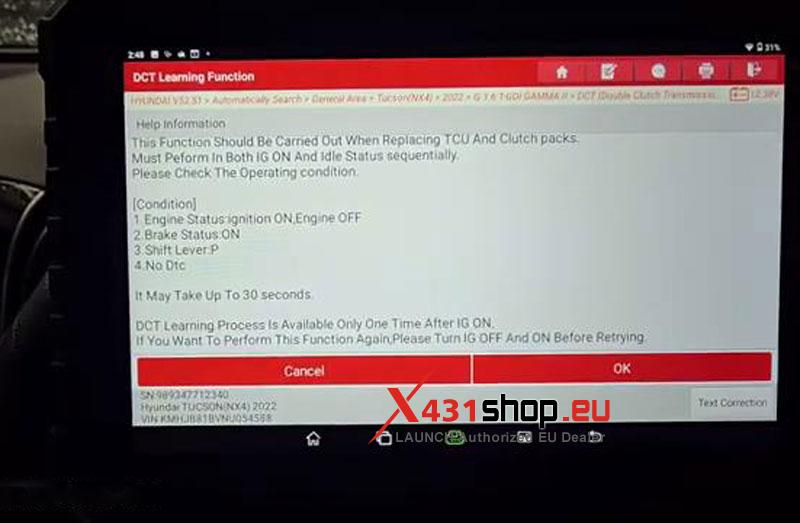

- DCT Learning: I performed the DCT Learning function, successfully syncing the new hardware with the TCU.
- Result Verification: Post-repair tests for even gears and reverse returned “Success”.
Technician’s Verdict
- Professional Build: The integrated kickstand allows hands-free data monitoring on the steering wheel during tests.
- Advanced Coverage: Beyond DCT work, it supports ADAS calibration, EV diagnostics, and oscilloscope functions.
The Bottom Line: For modern 2022+ models, the Launch X431 PRO3S+ Elite provides a clear, data-driven path to a fix. This Tucson is back on the road, shifting smoothly through all gears (D1-D4) and reverse.
