When choosing a high-end automotive diagnostic tool, Launch’s X431 series stands out. Two top contenders are the X431 PRO ELITE and the X431 PRO3 V+ Elite. Both are powerful, but key differences may sway your decision. Here’s a concise comparison to help you choose.
Comparison Table
| Item | LAUNCH X431 PRO ELITE | LAUNCH X431 PRO3 V+ Elite |

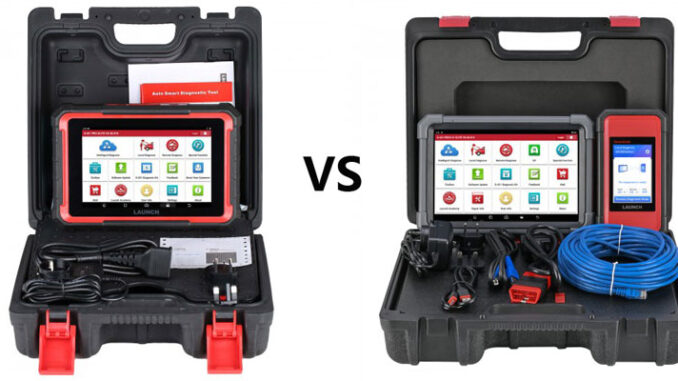

| Image |  |
 |
| VCI | × | SmartLink C |
| CPU | 2.0GHz 4-core | 2.0GHz 4-core |
| OS | Android 10 | Android 10 |
| ROM | 4G | 4G |
| Memory | 64G | 64G |
| Screen | 8 inches | 10.1 inches |
| Resolution | 1280*800 | 1280*800 |
| Rear Camera | 8.0MP | 8.0MP |
| Temperature | 0～50℃ | 0～50℃ |
| Connection | USB | Bluetooth/USB |
| Battery | 6000mAh | 6300mAh |
| Full-system Diagnosis | 38+ | 60+ |
| AUTOVIN | √ | √ |
| Special Function | √ | √ |
| Active Test | √ | √ |
| Guidance Function | √ | √ |
| ECU Coding | √ | √ |
| TSB | × | √ |
| Remote Diagnosis | √ | √ |
| J2534 | √ (with Smartlink C) | √ |
| D-PDU/RP1210 | × | √ |
| DoIP | √ | √ |
| CAN FD | √ | √ |
| Topology | × | √ |
| PIN Detection | √ | √ |
| Test Plan | √ | √ |
| Software Mall | √ | √ |
| ADAS Calibration(ADAS Calibration Tools Required) | √ | √ |
| TPMS(TSGUN/i-TPMS Required) | √ | √ |
| IMMO Programming(X-PROG3 IMMO Programmer Required) | √ | √ |
| Key Programming(Key Programmer Required) | √ | √ |
| Oscilloscope(S2-2/O2-2 Required) | √ | √ |
| Sensor(LTR-03 RF Sensor Required) | √ | √ |
| Endoscope(VSP600 Endoscope Required) | √ | √ |
| Battery Test(BST360 Required) | √ | √ |
| Multimeter(Multimeter Required) | √ | √ |
| Measure Insulation Resistance(Insulation Tester Required) | √ | √ |
| Measure AC/DC Current(AC/DC Current Clamp Required) | √ | √ |
|
European Professional Software License includes: 1. X-431 passenger car software 1 year; 4. Mercedes 1 year; 5. Renault & Dacia 20 connections; 6. FCA & Maserati 1 year (Extra Purchase). |
× | √ |
| FCA SGW (Extra Purchase) | √ | √ |
| Renault SGW (Extra Purchase) | √ | √ |
| X431 FIX – CarSET PRO database (Extra Purchase) | × | √ |
| Updates | 2 years free | 2 years free |
Detailed Comparison & Analysis
- Hardware & Design
The PRO3 V+ Elite takes the lead with a larger 10.1-inch screen (vs. 8-inch) and a slightly larger battery (6300mAh), offering better visibility and longevity. Crucially, it comes with the SmartLink C VCI module included, supporting both Bluetooth and USB connections. The PRO ELITE requires this module to be purchased separately.
- Diagnostic Capabilities
Both tools offer a full suite of functions: full-system diagnosis, active tests, ECU coding, remote support, and guided functions. However, the PRO3 V+ Elite supports significantly more vehicle systems (60+ vs. 38+) and includes valuable extras like a Technical Service Bulletin (TSB) database and network topology mapping, which are absent on the PRO ELITE.
- Professional Software & Licensing
This is the most significant difference. The PRO3 V+ Elite includes a 1-year European Professional Software License covering passenger car software, CarSET PRO, SGW packs, and specific access to Mercedes, Renault, and FCA (with an extra purchase for FCA). The PRO ELITE does not include this license, making the PRO3 V+ a much better value for professionals in the European market.
- Expandability:
Both devices are highly expandable. They can integrate with the same array of optional accessories (sold separately) for advanced jobs like:
- TPMS Service (with TSGUN)
- Immobilizer & Key Programming (with X-PROG 3)
- Oscilloscope Readings (with O2-2 Scopebox)
- Videoscope Inspection (with VSP600)
- Battery Testing (with BST360)
Recommendation: Which One Should You Buy?
- Choose the LAUNCH X431 PRO3 V+ Elite if:
– You are a professional technician or workshop in Europe.
– You need out-of-the-box functionality (includes VCI and critical software licenses).
– You require broader vehicle coverage, TSB data, and topology functions.
– Your work involves a wide range of European brands (Mercedes, Renault, FCA).
The PRO3 V+ Elite is the superior, all-in-one package that justifies its higher price with included essentials, saving you money and hassle on separate purchases.
- Consider the LAUNCH X431 PRO ELITE if:
– You already own a compatible LAUNCH VCI (like the SmartLink C).
– Your diagnostic needs are focused on basic and special functions without requiring advanced topology or TSB databases.
– You are on a tighter budget and don’t need the included European software licenses.
In short, for most professionals, the X431 PRO3 V+ Elite is the clear winner due to its comprehensive package, superior features, and better long-term value. The PRO ELITE serves as a capable base unit but requires additional investment to reach the same functionality level.
