This is a tutorial on how to do Cheysler ID46 Key Adding with LAUNCH X431 IMMO ELITE/ X431 IMMO PLUS step by step.
Vehicle Remote >> Chrysler >> All remotes >> Chrysler KeylessGo ID46 433M >> Generate
Burn successfully.
Chrysler >> Automatically Search
Please check if there are any other OBD communication components are installed on the vehicle, remove it if Yes and then perform Diagnosis.
OK >> Immobilizer System Detection
Please keep the network connection and login normal. Otherwise, the data may be inaccurate.
Immobilizer System Selection >> RFH/TPMS(Radio Frequency Hub – Tire) >> OK >> Special Function >> Read Immobilizer Password(PIN Code) – Intelligent key/FOBIK
Performing this function may change the state of the vehicle.
Please exercise caution!
Please switch ignition off, and turn on emergency flasher.
The read password is: 1401
Erase ignition FOBIKs >> OK
This function erase all ignition FOBIKs currently programmed to this vehicle. Place the start switch in the run state.
Enter the vehicle PIN: 1401
Click “Yes” to verify the PIN.
RF-HUB Replace >> OK
The Pin Unlock Was Successful. Continue to erase all ignition fobiks.

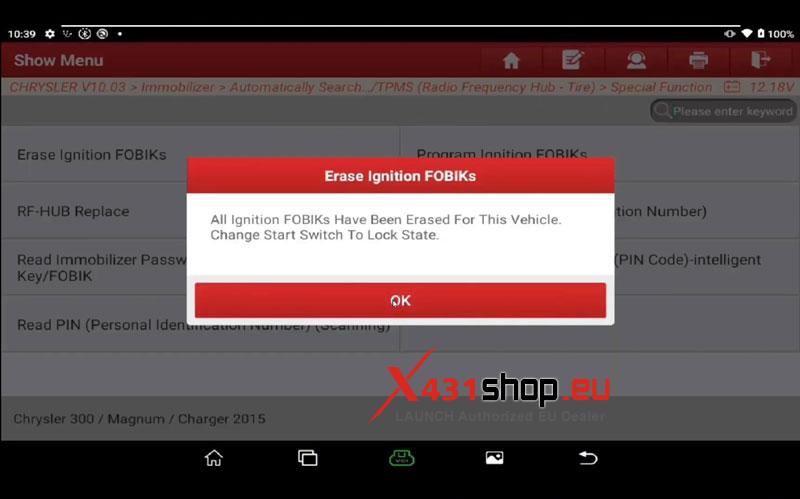

All ignition FOBIKs have been erased for this vehicle.
Change start switch to lock state.
Program Ignition FOBIKs >> OK
Use the function to program FOBIK(s) when the RF-HUB has been replaced or additional FOBIK(s) need to be added. The FOBIK(s) being programmed must be inside the vehicle near the center console during this procedure.
Please make sure that there are no wireless devices(notebook, scan tool, cell phone) within close proximity of the FOBIK(s) being programmed.
Place the start switch in the ignition lock state.
Enter Vehicle PIN: 1401 >> OK
Check VIN(Vehicle Identification Number) >> OK
Have the FOBIK to be programmed readily available in your hands!
Once you continue you will need get into the vehilcle(If not already there) and press the unlock button within 30s.
The key Fobik should be in the vehicle near the center console when the unlock button is pressed and remain there until it is programmed.
Press and release the unlock button once on the FOBIK being programmed and then continue. Key FOBIK should be near or on the center console and remain there until programmed.
Click OK.
Programming of ignition FOBIK successful.
Click Cancel to complete.
RF-HUB Replace >> OK
Use the function when the RF-HUB has been replaced. Ignition FOBIK(s) muse be programmed before running this function. Place the start switch in the run state.
OK >> Enter the Vehicle PIN: 1401 >> YES
Learning VIN(Vehicle Identification Number) and vehilce configuration. Please wait as this will take several seconds.
RF-HUB replace was successful.
The VIN and vehicle configration have been learned.
Cycle the ignition off before attempting to start the vehicle.
