Tested the LAUNCH X431 CRP919E BT on a 2023 Tacoma with a subtle misfire — no codes, but live data told a different story.
In real use, this is where the tool shows its value: catching early-stage issues that basic scanners completely miss.
This is not a “code reader test” – it’s a real workshop evaluation of how usable the Launch X431 is when nothing obvious shows up.
Case Details
Vehicle came in as a 2023 Toyota Tacoma
Complaint was simple: slight misfire feel, no CEL, no stored codes.

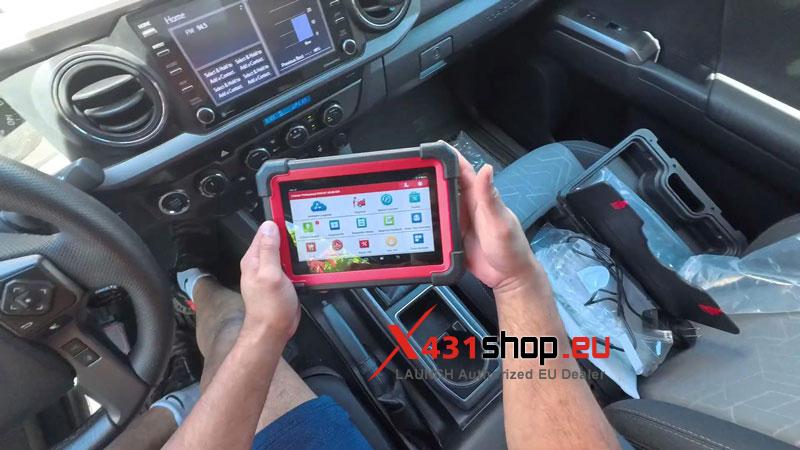

Hooked up the X431 CRP919E BT just to see if live data would reveal anything.
What I actually think about the tool
Straight answer first:
- It’s a solid mid-range diagnostic platform, not just a scanner
- Live data access is where it earns its value
- Misfire monitoring per cylinder is actually usable in real diagnosis
- But interpretation still depends heavily on technician experience
If you don’t know what you’re looking at, this tool won’t magically help you.
Workshop use

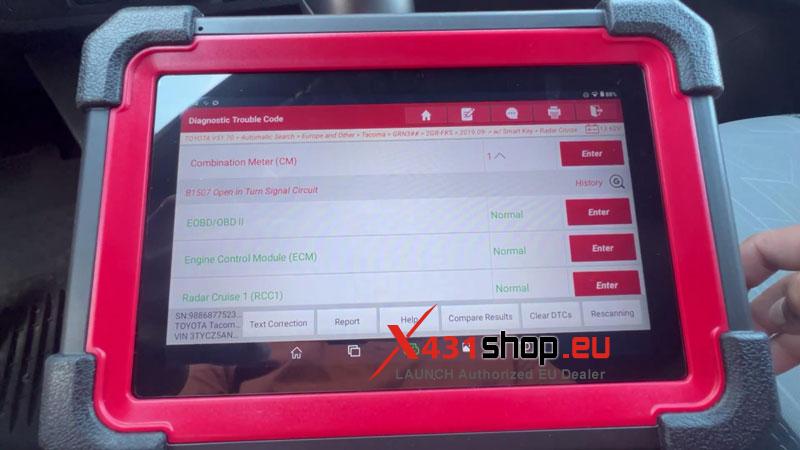

Full system scan:

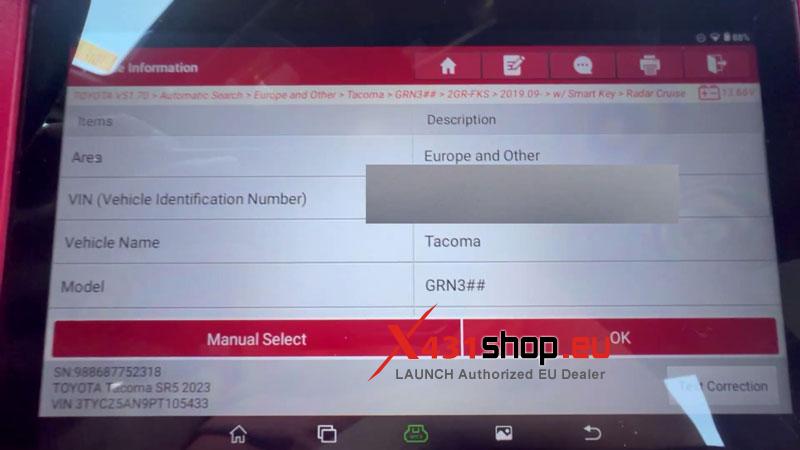

- VIN auto ID worked correctly

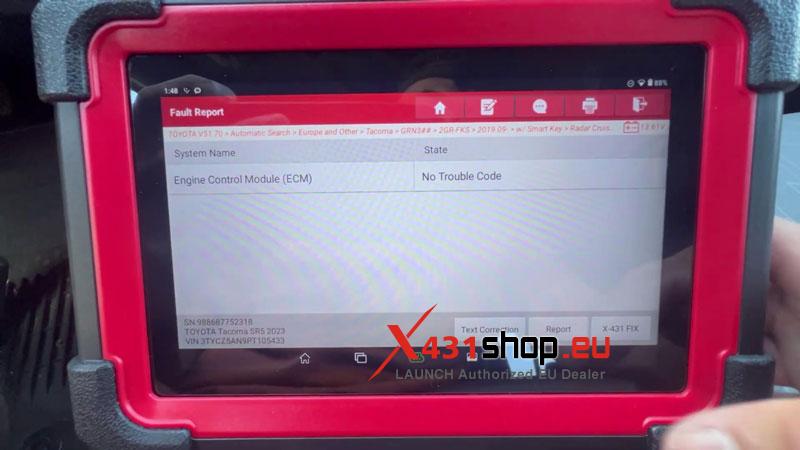

- No DTCs in engine or transmission
- Fast enough scan time for a Toyota platform
So far: nothing special — which is normal in cases like this.
Where the tool actually mattered
Inside live data:

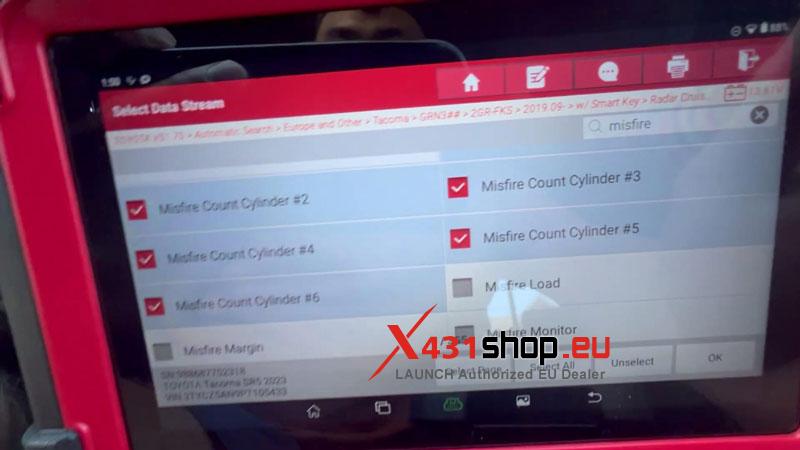

- Used PID search instead of manual navigation
- Found misfire counters per cylinder
- Saw low-level intermittent counts across multiple cylinders
- No check engine light triggered because counts were too low
During rev/load changes:
- Random misfire activity appeared and shifted between cylinders
- Cylinder 6 stayed mostly clean
This didn’t “diagnose a failure” — but it confirmed a pattern worth investigating further.
Strengths vs Limitations (real-world only)
Strengths
- Strong live data workflow (search + filter is fast)
- Useful for no-code drivability complaints
- Cylinder-level misfire data is actually meaningful

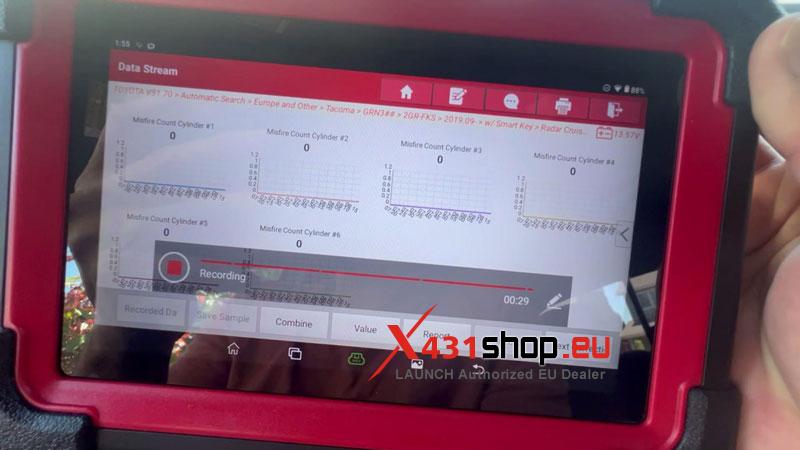

- Recording function helps capture intermittent issues
- Stable connection once paired
Limitations
- Screen glare in daylight is noticeable
- Data can be misleading without experience
- Auto scan slows slightly on deeper modules
- Not beginner-friendly despite UI simplicity
Bottom line
This is not a tool you buy to “read codes faster.”
It’s a tool you buy when you want to see what’s happening when nothing is showing up yet.
On this Tacoma, it didn’t find a failure — but it clearly showed early-stage misfire activity that a basic scanner would miss completely.
That’s the real value of it in a workshop.
