LAUNCH X431 has expanded its universal key collection with 107 new remote keys, offering a comprehensive selection to support your work. Whether you’re a locksmith or run a repair shop, these additions are a valuable asset for growing your service capabilities.
LAUNCH KEY PROGRAMMER TOOLS |
||
| Product Picture | Usage Scenario | Function |
|
|
For chip reading and frequency testing SPECIFICATION: Product Size: 80*40*11.2mm Working Voltage: 5V Operating Temperature: 0-50°C Communication Interface: USB Low-frequency Communication Interface: 125K low-frequency transceiver High-frequency Communication Interface: support 13.56M high-frequency transceiver, support 3000M-500M high-frequency signal frequency measurement |
|
Super chips can support the chip type conversion for most car models, and can be matched separately to achieve vehicle startup | Support 8A (Toyota H chip/Hyundai 8A chip), Super chips can support the chip 8C(Haima), 8E (Honda), 4C (old Corolla) type conversion for most car models, 4D(606370808372G6769) and can be matched separately to 7935(334041424344) achieve vehicle startup. Super Chip 7936 (46), 4E (64), 48 (VW Honda, etc.), 11/ 12/ 13, 47, 49 |
Here is the introduction of the LAUNCH series keys:
LS-SmartKeys |
||
| Product Picture | Usage Scenario & Function | |
 |
NXP- SmartKey | LS smart keys are only suitable for car models with push-start smart keys, providing the keyless start and door-side sensing functions. 1. Wireless programming 2. Built-in anti-theft chip 3. Use 2032 button battery 4. Two-year warranty for circuit board 5. Repeatable flashing 6. Battery required when generating 7. Support 46, 47, MQB48, MQB49, 4A chip models 8. Support generation of frequency 315, frequency 433, frequency 868, and frequency 902 |
 |
LM38-SmartKey | LS smart keys are only suitable for car models with push-start smart keys, providing the keyless start and door-side sensing functions. 1. Wireless programming 2. Built-in anti-theft chip 3. Use 2032 button battery 4. Two-year warranty for circuit board 5. Repeatable flashing 6. Battery required when generating 7. Support 46, 47, MQB48, MQB49, 4A chip models 8. Support generation of frequency 315, frequency 433, frequency 868, and frequency 902 9. Support 8A and 4D chips |
|

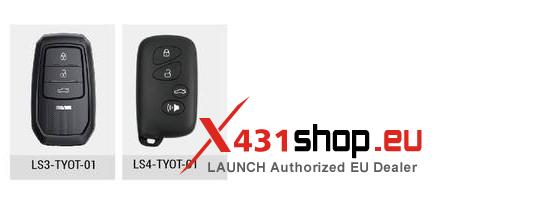

LM38-TOYOTA | 1. Wireless programming 2. Built-in anti-theft chip 3. Use 2032 button battery 4. Two-year warranty for circuit board 5. Repeatable flashing 6. Battery required when generating 7. Support 46, 47, MQB48, MQB49, 4A chip models 8. Support generation of frequency 315, frequency 433, frequency 868, and frequency 902 9. Support 8A and 4D chips 10. Support 8A/4D smart cards for Toyota 48 and 4A chip models such as Chang’an, Hongqi, BAIC, Jiangling, Landwind, Soueast, SWM, Lynk & Co, Lifan, JAC, Dongfeng, Nissan Knob, Suzuki SX4, Hyundai. Support Audi 754 smart card generation. |
 |
LM38-754J | |
LN-Wireless
LN remotes only support some car models.According to the chip type, the anti-theft chip and remote control are integrated into one chip. Keys of Honda 46 and 47 chip types need to use this type of remotes.
1. Wireless programming.
2. Built-in anti-theft chip.
3. Use 2032 button battery.
4. Two-year warranty for circuit board.
5. Repeatable flashing.
6. Battery required when generating.
7. Support 11/ 12/ 13/ 7936/ 7937/ 7947/ 7946 chip models.
8. Support generation of frequency 315, frequency 433, frequency 868, and frequency 902.
LE-Wireless
LE remotes have anti-theft chips and remote control chips. The anti-theft chips are super chips that can generate multiple types of chips, covering most car.
1. Wireless programming.
2. Built-in multimodal chip.
3. Use 2032 button battery.
4. Two-year warranty for circuit board.
5. Repeatable flashing.
6. Battery required when generating.
7. Support 11/ 12/ 13/ 7935/ 7936/ 7937/ 7938/ 7939/ 7946/ 48/ 4C/ 4D/ 4E/ 8A/ 8C/ 8E chip models8. Support generation of frequency 315, frequency 433, frequency 868, and frequency 902.
LK-Wire
LK remotes are suitable for situations where only matching the remote control is required without the need of a chip, or when used together with a super chip.
1. Wired programming.
2. No anti-theft chip, needs to be usedwith an anti-theft chip.
3. Use 2032 button battery.
4. Two-year warranty for circuit board.
5. Repeatable flashing.
6. Cannot install batteries whengenerating.
7. Support generation of frequency 315, frequency 433, frequency 868, andfrequency 902.
MERCEDES-BENZ KEYS
LS Series: LS4-MRCDES-01
LS smart keys are only suitable for car models with push-start smart keys, providing the keyless start and door-side sensing functions.
1. Wireless programming.
2. Built-in anti-theft chip.
3. Use 2032 button battery.
4. Two-year warranty for circuit board.
5. Repeatable flashing6. Battery required when generating.
7. Support 46, 47, MQB48, MQB49, 4Achip models8. Support generation of frequency 315, frequency 433, frequency 868, and frequency 9029. Support 8A and 4D chips.
LN Series: LN4-MRCDES-01, LN4-MRCDES-02
Only applicable to MRCDES third-generation anti-theft models, with keyless start and door-side sensing functions.
1. Use 2032 button battery.
2. Two-year warranty of circuit board.
3. Repeatable writing.
4. Supports 315 frequency and 433 frequency generation.
5. Support 2009-2014 W211, W216, W164, W251 chassis and other models.
