The LAUNCH X431 tool special function supports calibration of the Vehicle Dynamic Suspension Temperature. This article will describe how to perform this function.
Supported equipment: Launch PRO or PAD series comprehensive diagnostic equipment.
X431 PRO series:
X431 PROS V / X431 V+ / X431 PRO ELITE / Pros Elite / X431 V / PRO3 V+ Elite
X431 PRO3S+ / Pro3 ACE / Pro3 APEX / X431 PRO5
X431 PAD series products:
Current equipment: PAD V ELITE
Function description: The dynamic suspension of some vehicles will automatically increase or decrease according to the temperature and vehicle status (such as the Range Rover’s suspension increases when the cooling system is turned on). If this function fails or the relevant module has been replaced, Vehicle Dynamic Suspension Temperature Calibration is required.
Tested vehicle model: Ford/2019/ Navigator, VIN: 5LMJJ2RT9KEL*****
Operation process:

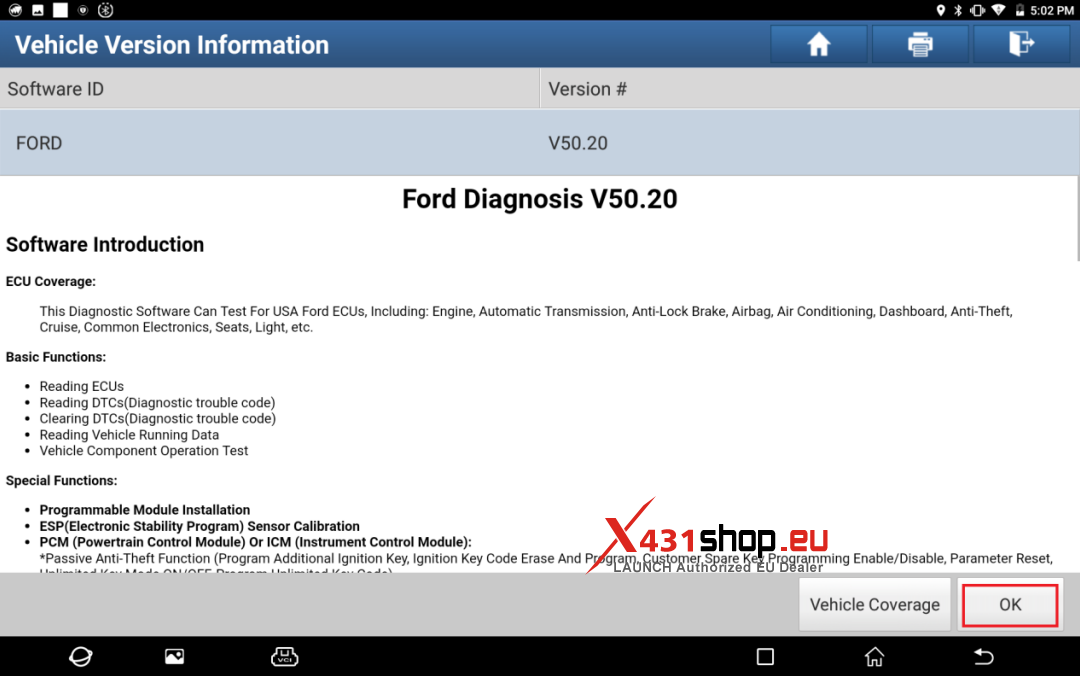

1. Connect the X431 PAD V to the vehicle, and choose [Local Diagnose] -> [Ford] to test on the PAD V.

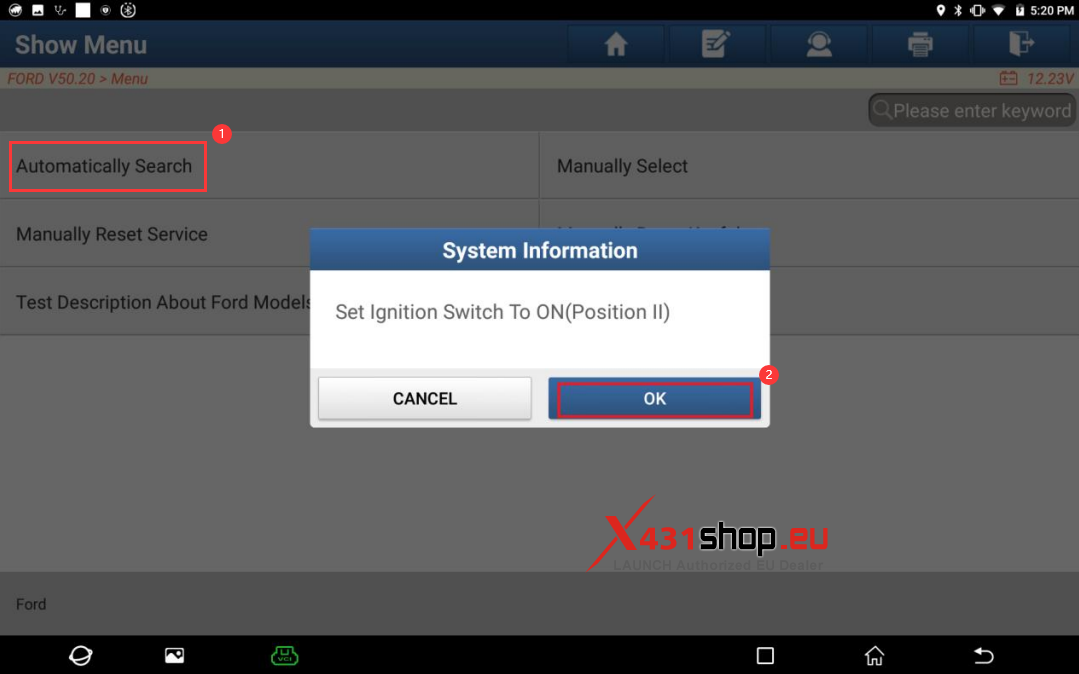

2. Choose [Automatically Search] to identify car models automatically.

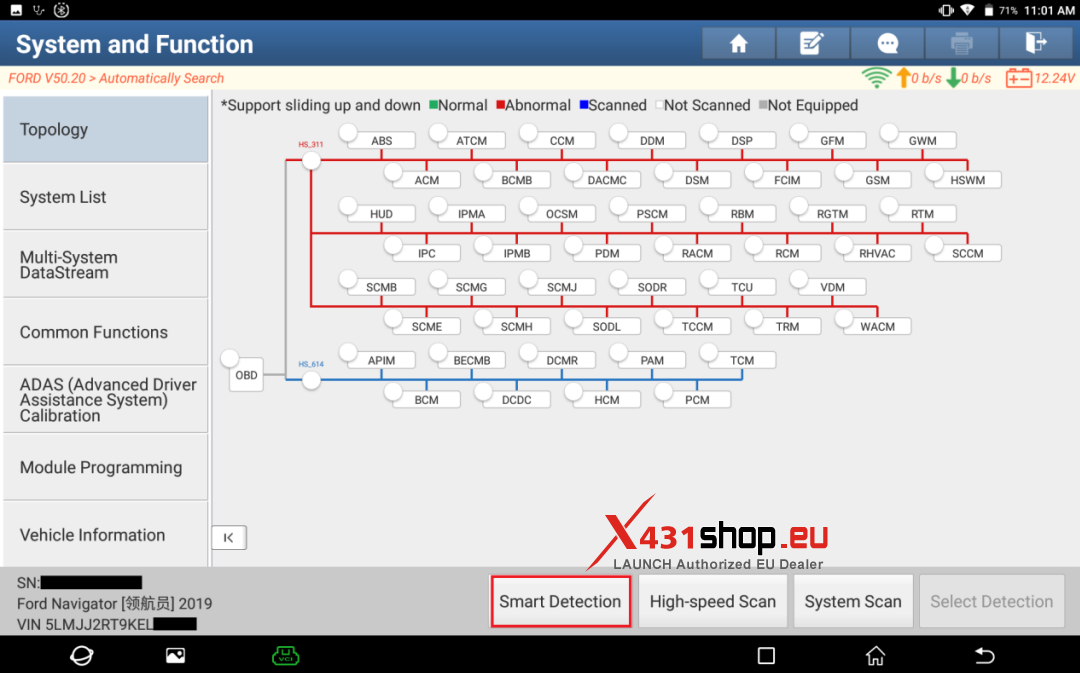

3. Click [Smart Detection] to scan the entire vehicle systems.

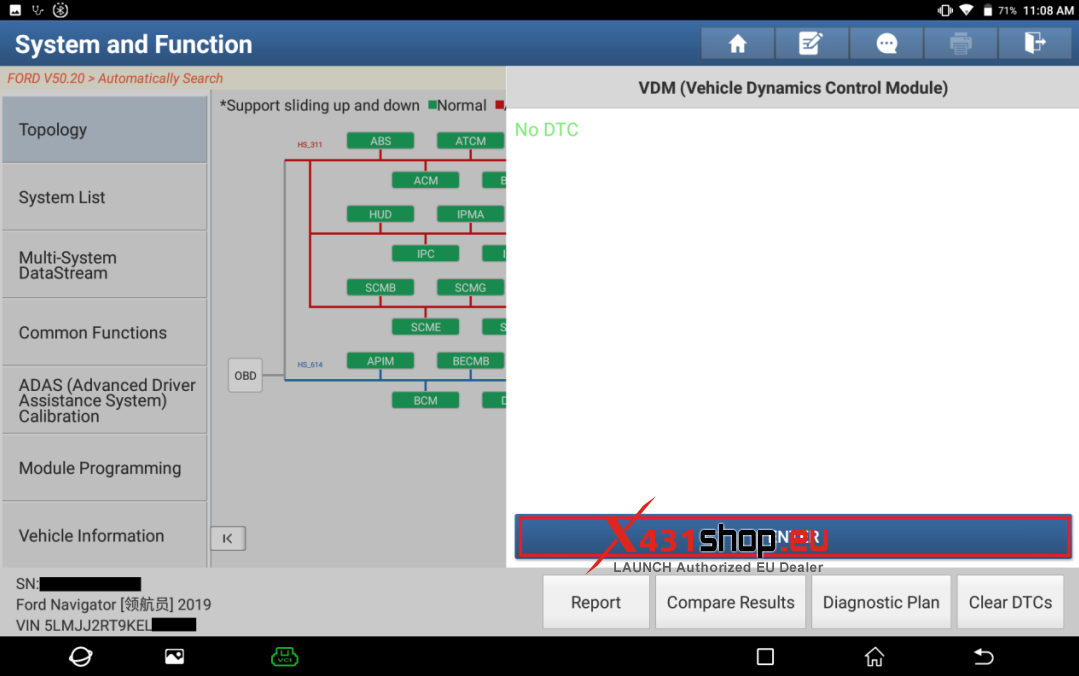

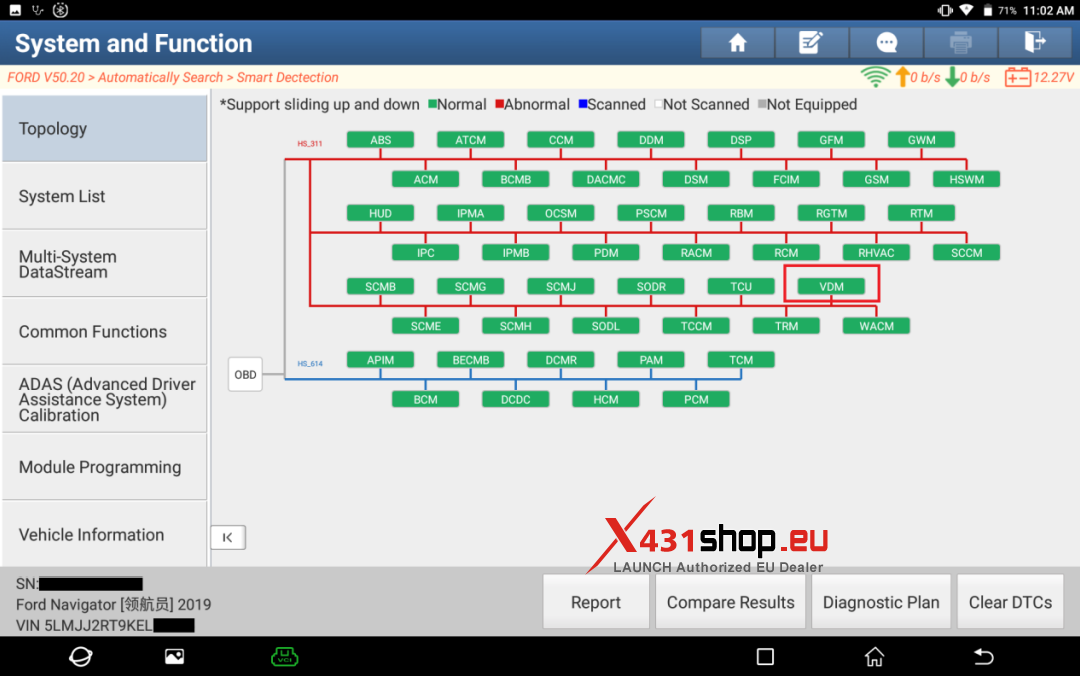

4. Click [VDM (Vehicle Dynamics Control Module)] to access the system.

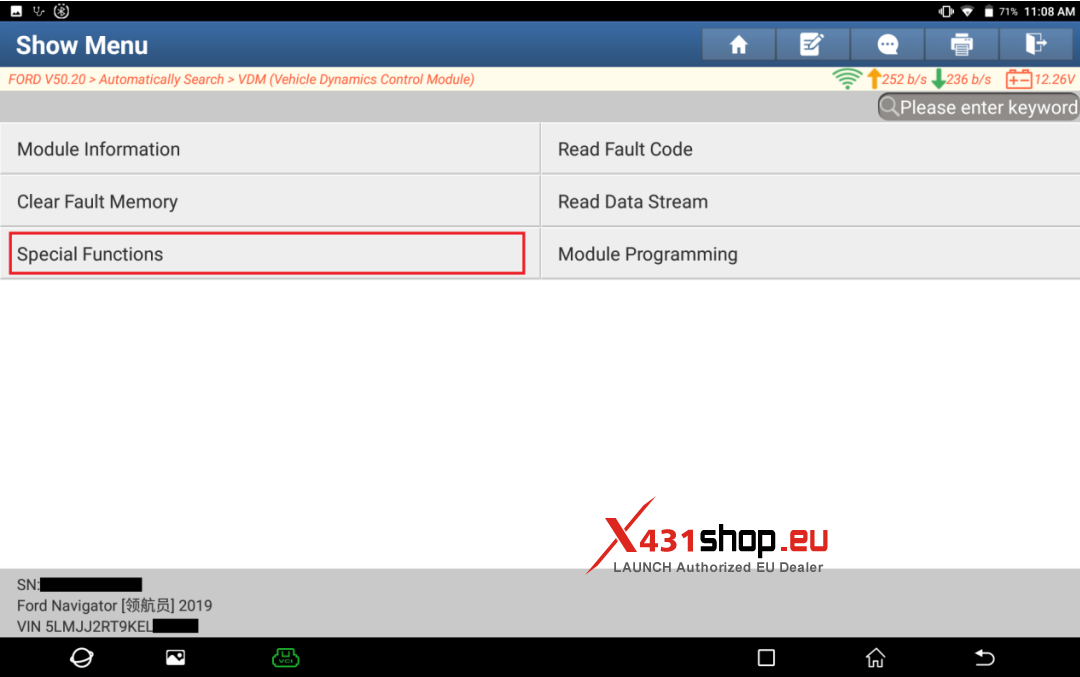

5. Click [Special Functions].

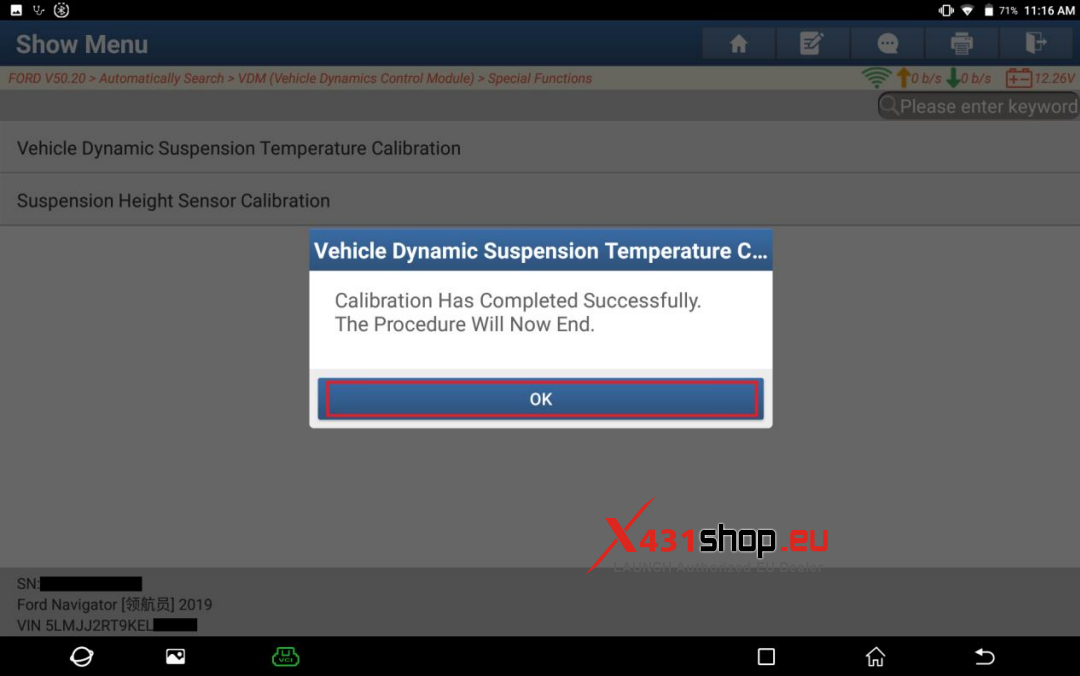

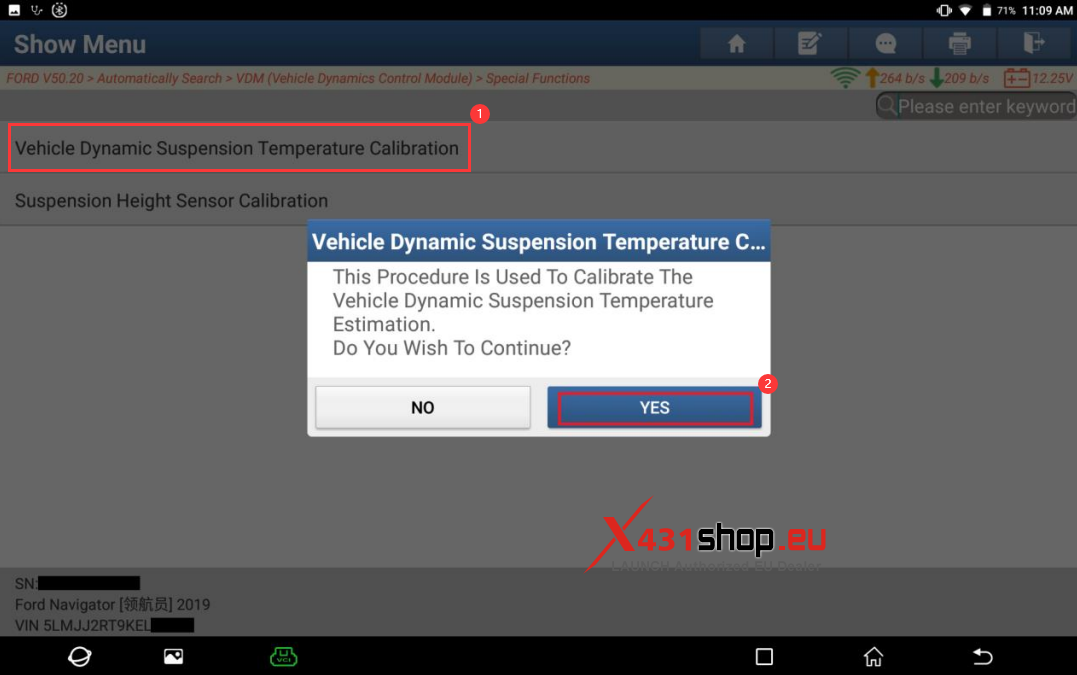

6. Click [Vehicle Dynamic Suspension Temperature Calibration], and wait for the vehicle dynamic suspension temperature calibration process to complete.
